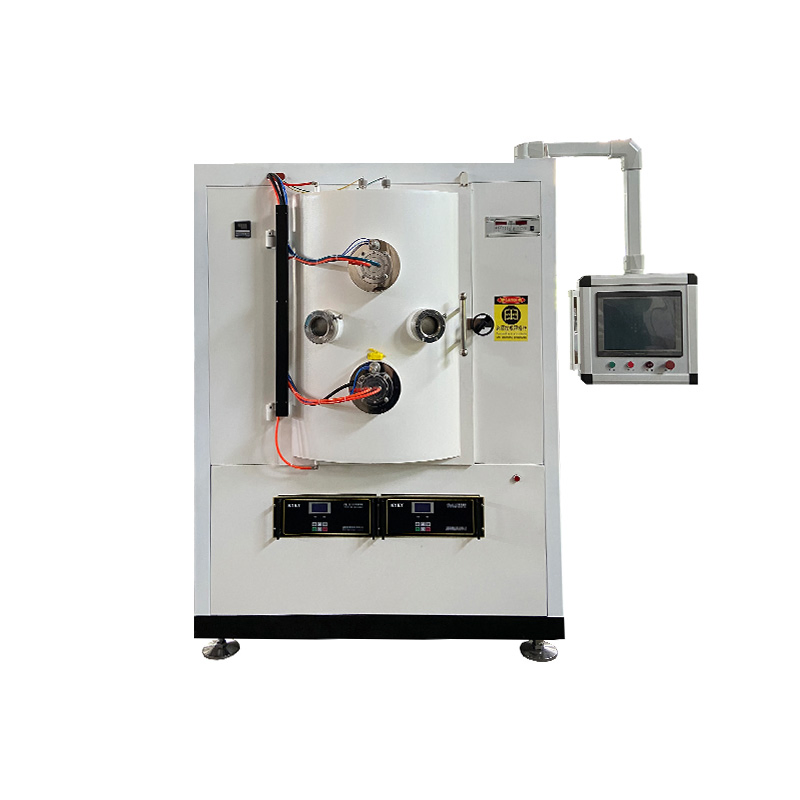

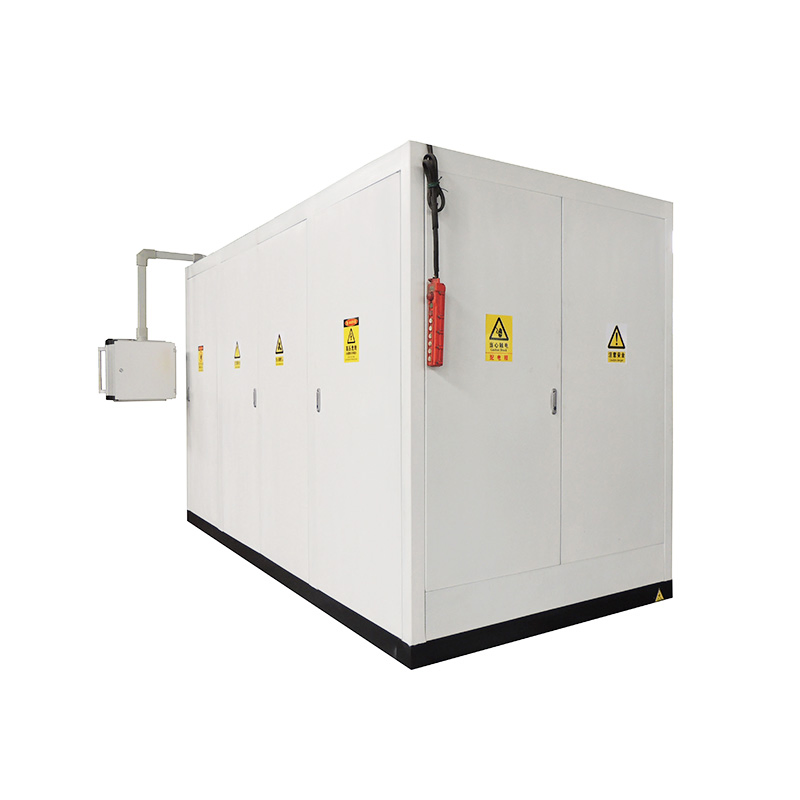

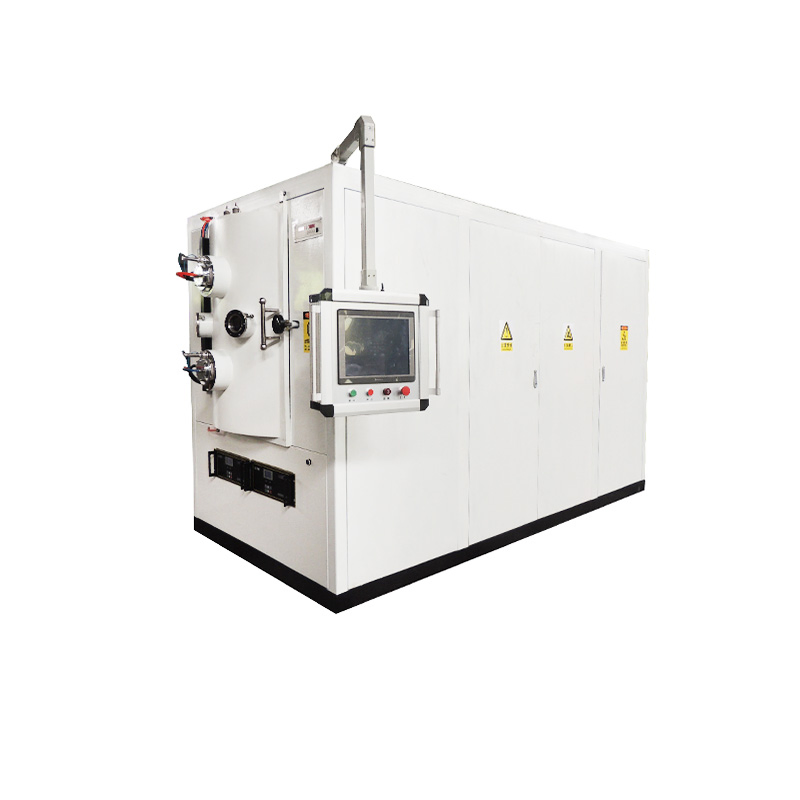

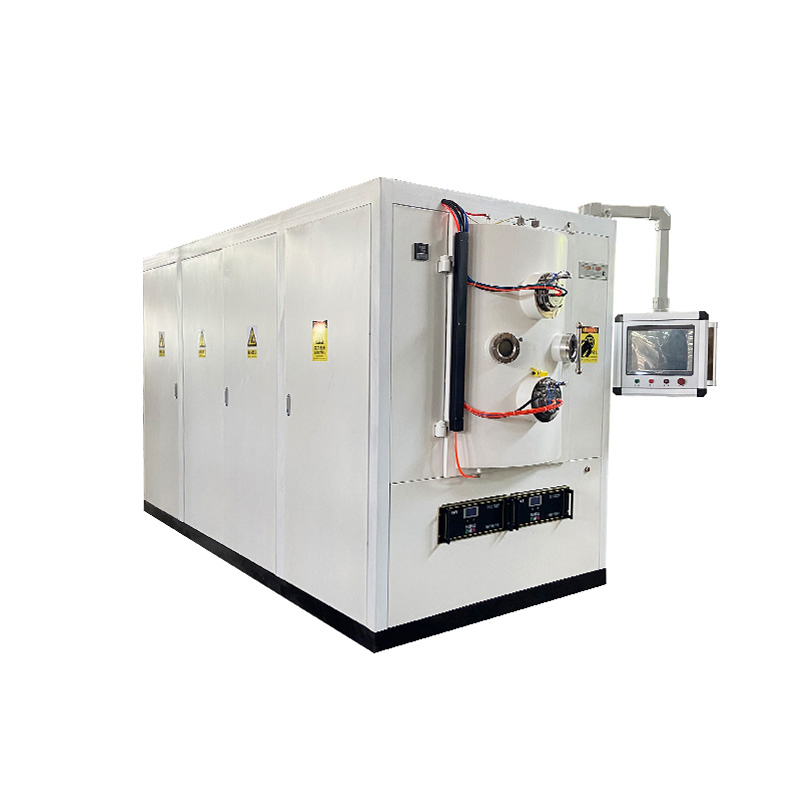

Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System

1 / 5

Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System

Customization:	Available
After-sales Service:	Engineers Can Be Sent to The Worksite
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Type:Coating Production Line

Coating:Vacuum Coating

Substrate:Steel

Certification:CE

Condition:New

Key Selling Points:Long Service Life

Equipment Name:Titanium Nitride Coating Equipment

Raw Material:Chrome, Titanium, Silver, etc

Coating Film:Tin Tic Crn Zrn Ticn

Coating Technology:Magnetron Sputtering + Arc Deposition

Production Capacity:50 Sets Per Year

HS Code:8543300090

Plasma Coating Machine - Titanium Nitride PVD Multi-Arc Ion Plating System

This high-tech environmental friendly equipment is designed for metal, glass, and surface coating. It significantly improves workpiece hardness, wear resistance, and surface aesthetics. Based on arc deposition technology, it is the ideal system for producing PVD hard coatings on industrial tools, molds, and decorative hardware.

Key Features

✓ Chamber size ranges from φ 600mm to φ1800mm (Customizable).
✓ 3-point vacuum level measuring and 2-point temperature measuring systems.
✓ High power ion source achieving uniform, large-area ion deposition.
✓ Multi-arc sources for depositing various metal and alloy layers.
✓ Fully automated auto-deposition control system.
✓ Selection of center-driving or planetary substrate domes.

Technical Specifications

Parameter	Description
Model	ARC series
Vacuum Chamber	SUS304, φ600mm-1200×600-1200mm (H)
Substrate Dome Size	Customized to customer needs
Rotation Speed	10 rpm to 50 rpm (Variable)
Arc Evaporation Source	2 to 16 sets
Vacuum System	Roughing Pump, Diffusion Pumps or Turbo Molecular Pump + Mechanical pumps

Performance Metrics

Ultimate Pressure	5.0×10^-4 Pa or lower
Pump Down Rate	25 minutes (Atm. to 5.0×10^-3 Pa)
Substrate Heater	Up to 550°C (Max)

Utility Requirements

Layout Dimensions	Approx. 5000mm (W) × 6500mm (D) × 3500mm (H)
Power Requirements	3-phase, 380V, 50/60Hz, 100-180kVA
Cooling Water Flow	140 L/min or greater
Compressed Air	0.5 MPa or higher
Gross Weight	Approx. 8500 kg

Broad Industrial Applications

The system is widely used across various industries including automotive, aerospace, precision tools, and decorative consumer goods.

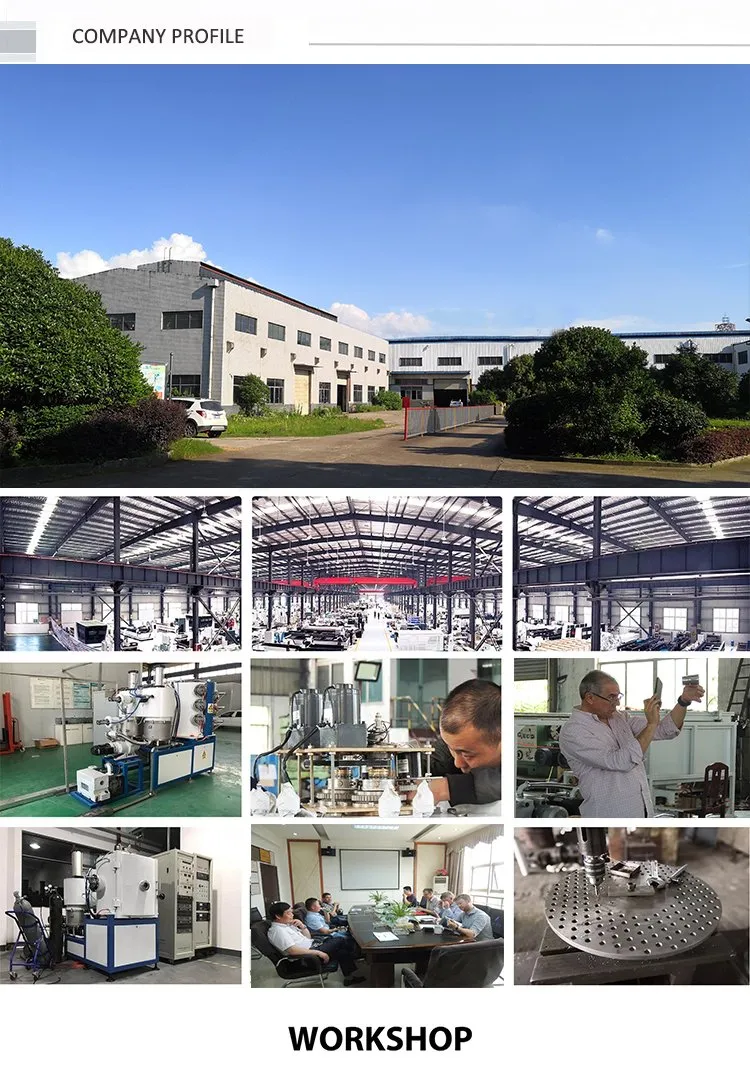

Manufacturing Excellence

Frequently Asked Questions

What materials can be coated using this equipment?

The system is designed for coating metals (such as steel), glass, and ceramics. Common raw materials for the coating include Chrome, Titanium, and Silver.

How long does it take to reach the working vacuum level?

The equipment can pump down from atmospheric pressure to 5.0×10^-3 Pa in approximately 25 minutes.

Is the equipment suitable for large industrial tools?

Yes, the ARC series is specifically optimized for hard coatings on metal tools, standard punch molds, forming molds, and high-precision dies.

Can the chamber size be customized for specific workpiece dimensions?

Absolutely. While standard sizes range from φ600mm to φ1800mm, we can customize the chamber height and diameter according to your specific production requirements.

What are the environmental benefits of this PVD system?

PVD multi-arc ion plating is a high-tech, environmentally friendly surface treatment process that does not produce harmful waste compared to traditional electroplating.

What type of maintenance support is available?

We provide comprehensive technical support, including video technical assistance, to ensure the long service life of the equipment.
